AdBlue "AdZapf35DUO"

for the car/truck filling station

-certifiable- (option)

AdZapf 35DUO

For the quantity recording and the sale of AdBlue, you need a calibrated recording unit. The AdBlue units from"lümatic" offer you exactly the right tool for this.

We also offer DUO dispensers for this purpose, which can be used from both sides.

Contact

For further information we are at your disposal at any time. Please contact us!

T +49 2241-2647-20
F +49 2241-2647-67
E info@luematic.de

Model AdZapf35DUO

Dispenser for AdBlue

The DUO dispensers are equipped similarly to the AdZapf35ex model. The standard 3.5-meter dispensing hose can also be extended to 5 meters, so that refueling of cars and trucks is no problem. The display panel shows a liter counter as well as a price calculator upon customer request.

The dispenser is also equipped with an automatic drip emptying system, so that this tank is emptied at regular intervals. Heating of the interior is also integrated. The closing of the gun pocket takes place automatically.

This version of the dispenser is optionally an explosion-proof "ATEX" version and also has MID approval DE-12-MI005-PTB023. In addition to the pulse interface, the following data interfaces are also available, among others: ER3, ZSR, LON.

Technical data

Height: 1,640 mm
Width: 600 mm (with drum 750 mm)
Depth: 500 mm (with drum 1,250 mm)
Weight: approx. 68 kg

Conveying capacity:
> approx. 30 liters/min. (truck specification)
> approx. 10 liters/min. (car specification)
Power supply: 230 Volt -50 Hz-
Compressed air supply: 5-6 bar, 140 Ltr/min.



For the sake of the environment

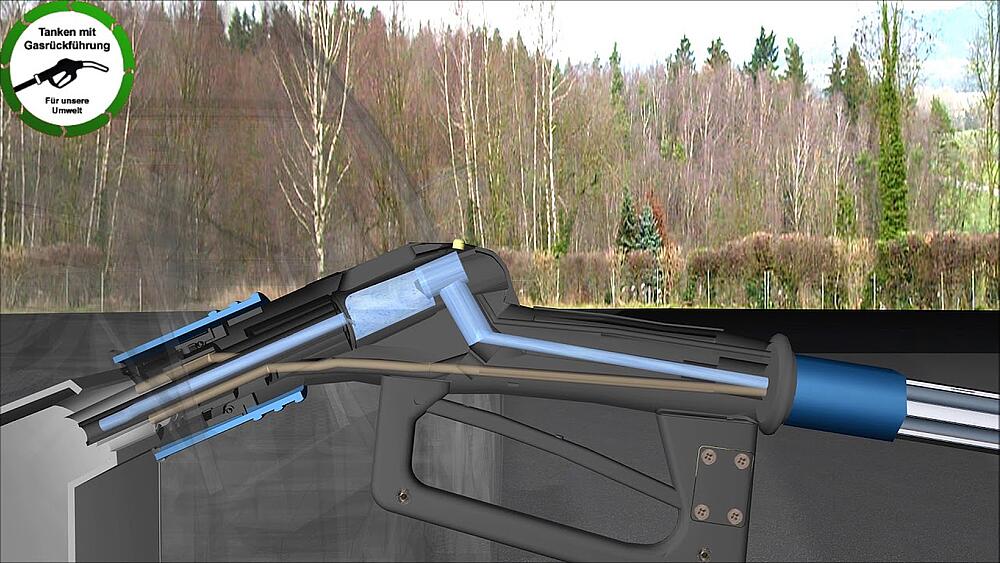

The nozzles can be operated via a "click & fill" design. This additional equipment prevents gases from escaping during the refueling process. Gas recirculation into the dispenser has thus been integrated for environmentally conscious refueling. You can take a closer look at the process in one of our product videos below.

► Click here to go directly to the video

Technical domunentation

Take a look at our products in use here

Mit dem Aufruf des Videos erklärst Du Dich einverstanden, dass Deine Daten an YouTube übermittelt werden und dass Du die Datenschutzerklärung gelesen hast.

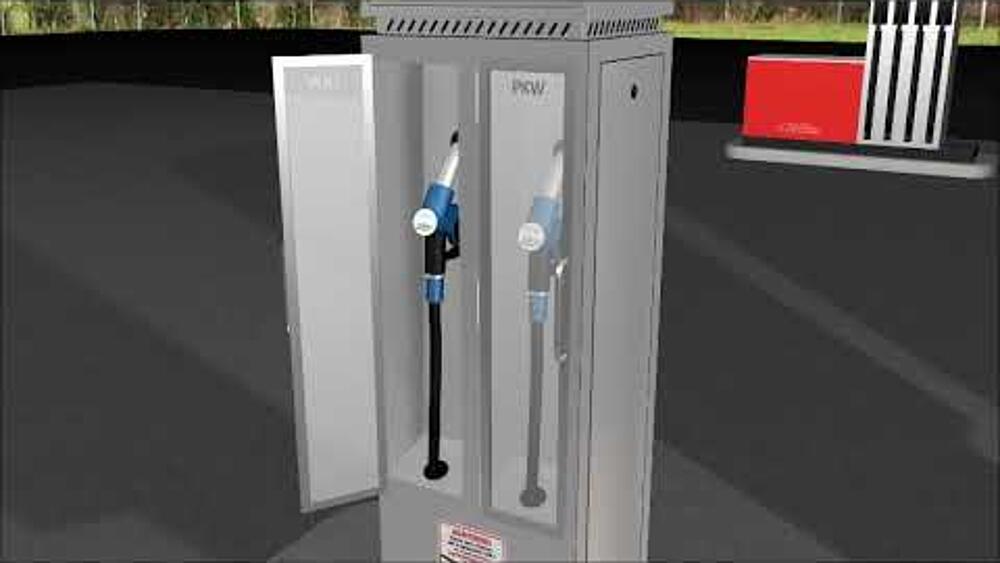

lümatic - AdBlue Zapfsäule ATEX Doppelabgabe PKW/LKW für Tankstellen 2020
Play Button
Mit dem Aufruf des Videos erklärst Du Dich einverstanden, dass Deine Daten an YouTube übermittelt werden und dass Du die Datenschutzerklärung gelesen hast.
lümatic - AdBlue Zapfsäule PKW Betankung (ATEX) 2020
Play Button

For more information about the AdBlue starter set, please contact us. We look forward to hearing from you!
